Turing Product
EC-A4310-P2-36H-1
Part ID: 2RE0DE5CQF
$849

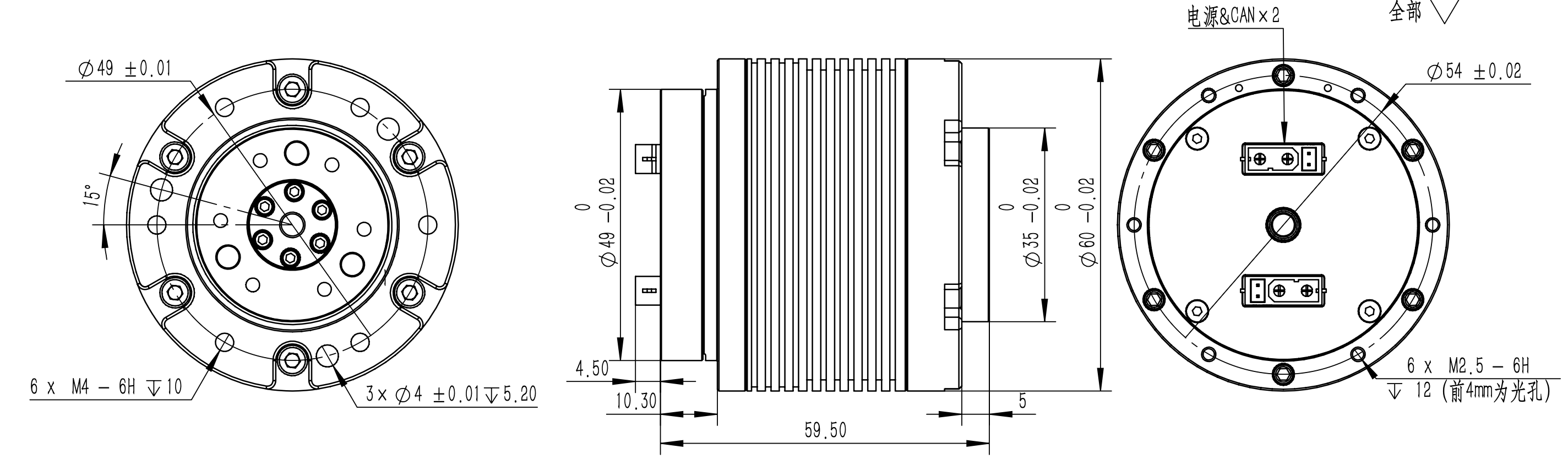

CAD
DownloadSpecifications
| Company | ENCOS |
| Type | EC-A4310-P2-36H-1 |
| Peak torque(Nm) | 36 |
| Peak speed(RPM) | 89 |
| Rated Current(A) | 7.8 |
| Rated torque (Nm) | 12 |
| Peak Current(A) | 30 |
| Rated Voltage(V) | 24 |
| Max Voltage(V) | 48 |
| Rated Speed(RPM) | 75 |
| Reduction Ratio | 36 |
| Diameter(mm) | 60 |
| Thickness(mm) | 59.5 |
| Weight | 384g |
| Hollow | Yes |
| CAN | def. |
| EtherCAT | null |
| CANFD | null |
| Rotor | null |
| Encoder | Dual |
| Verification | Yes |
