Turing Product

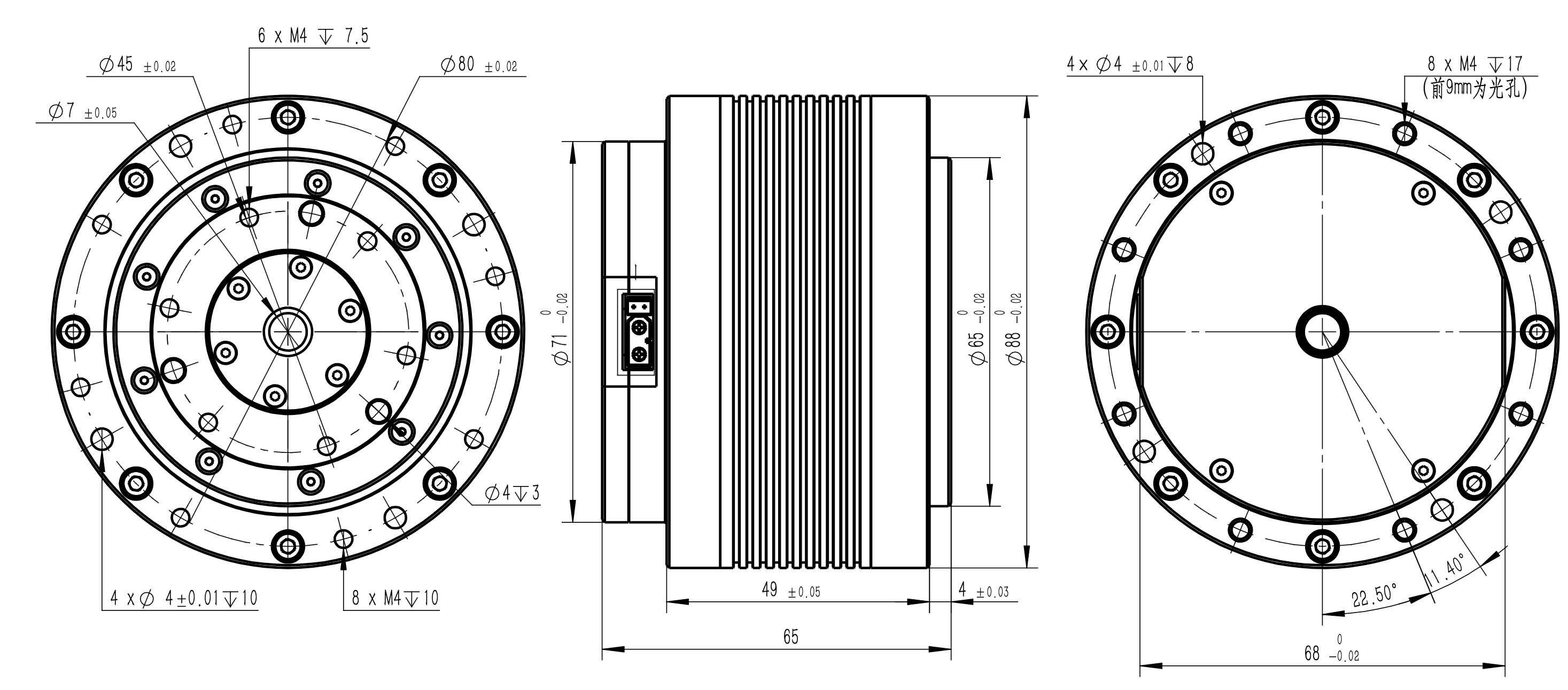

EC-A6408-P2-30.25H
Part ID: WF91CF8ZY
$1,199
CAD
DownloadSpecifications
| Company | ENCOS |
| Type | EC-A6408-P2-30.25H |
| Peak torque(Nm) | 60 |
| Peak speed(RPM) | 128 |
| Rated Current(A) | 10.3 |
| Rated torque (Nm) | 20 |
| Peak Current(A) | 60 |
| Rated Voltage(V) | 48 |
| Max Voltage(V) | 48 |
| Rated Speed(RPM) | 122.8 |
| Reduction Ratio | 30.25 |
| Diameter(mm) | 88 |
| Thickness(mm) | 65 |
| Weight | 832g |
| Hollow | Yes |
| CAN | def. |
| EtherCAT | null |
| CANFD | null |
| Rotor | null |
| Encoder | Dual |
| Verification | Yes |
