Turing Product

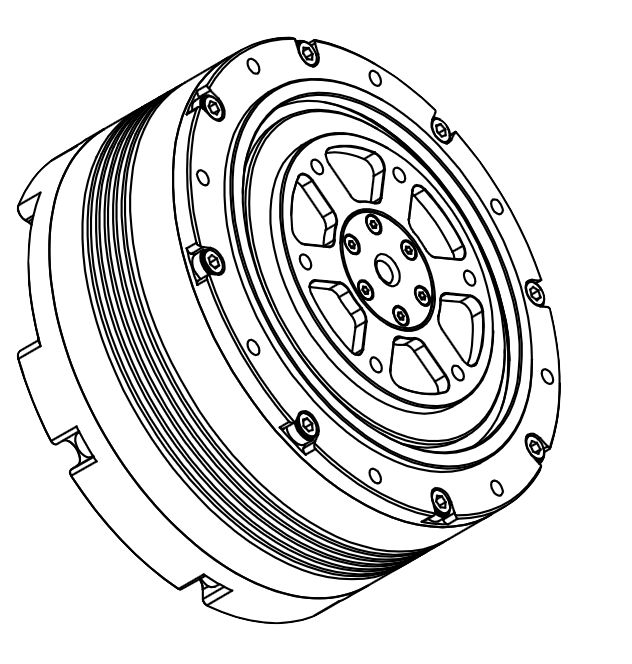

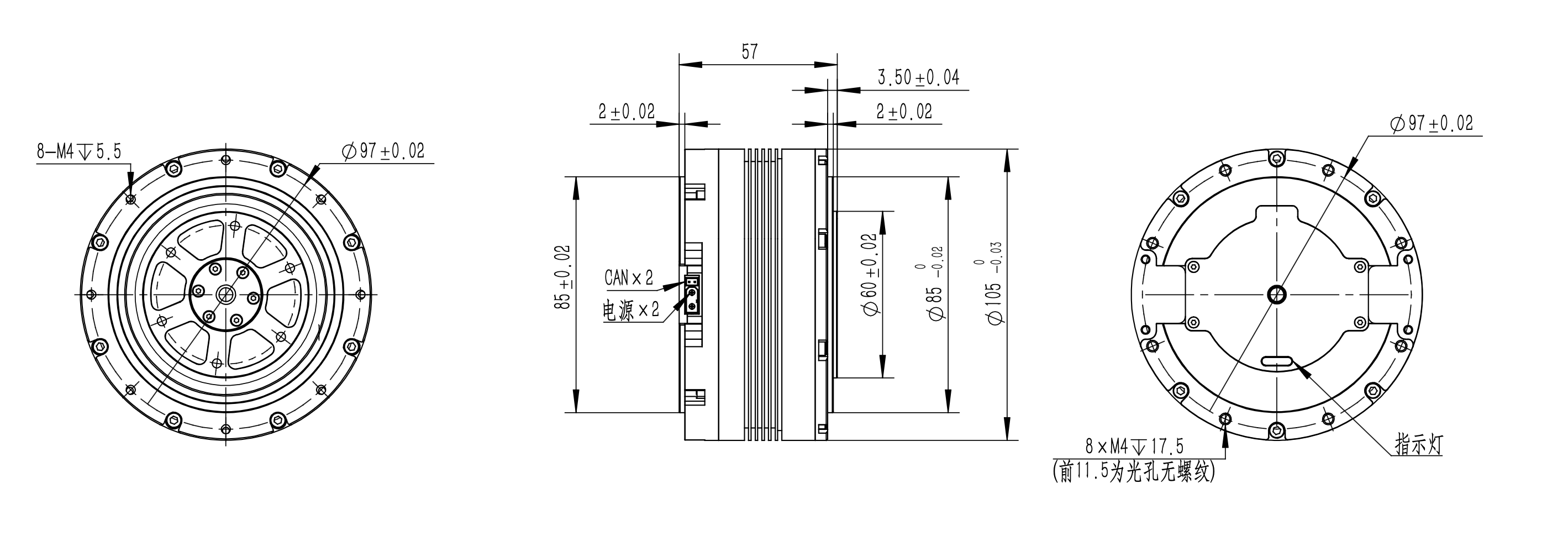

EC-A8116-P1-18H
Part ID: 1YMBT7OHD8
$1,599
CAD
DownloadSpecifications
| Company | ENCOS |
| Type | EC-A8116-P1-18H |
| Peak torque(Nm) | 130 |
| Peak speed(RPM) | 140 |
| Rated Current(A) | 21 |
| Rated torque (Nm) | 40 |
| Peak Current(A) | 70 |
| Rated Voltage(V) | 48 |
| Max Voltage(V) | 48 |
| Rated Speed(RPM) | 132 |
| Reduction Ratio | 18 |
| Diameter(mm) | 105 |
| Thickness(mm) | 57 |
| Weight | 963g |
| Hollow | Yes |
| CAN | def. |
| EtherCAT | null |
| CANFD | null |
| Rotor | null |
| Encoder | Dual |
| Verification | Yes |
