Turing Product

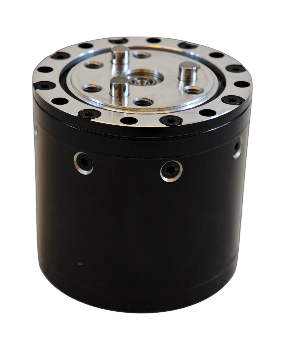

EL-05
Part ID: 1GF20FBRM
$89
CAD
DownloadSpecifications
| Company | RobStride |
| Type | EL-05 |
| Peak torque(Nm) | 6 |
| Peak speed(RPM) | 430 |
| Rated Current(A) | 2.6 |
| Rated torque (Nm) | 1.8 |
| Peak Current(A) | 11 |
| Rated Voltage(V) | 48 |
| Max Voltage(V) | 60 |
| Rated Speed(RPM) | 100 |
| Reduction Ratio | 9 |

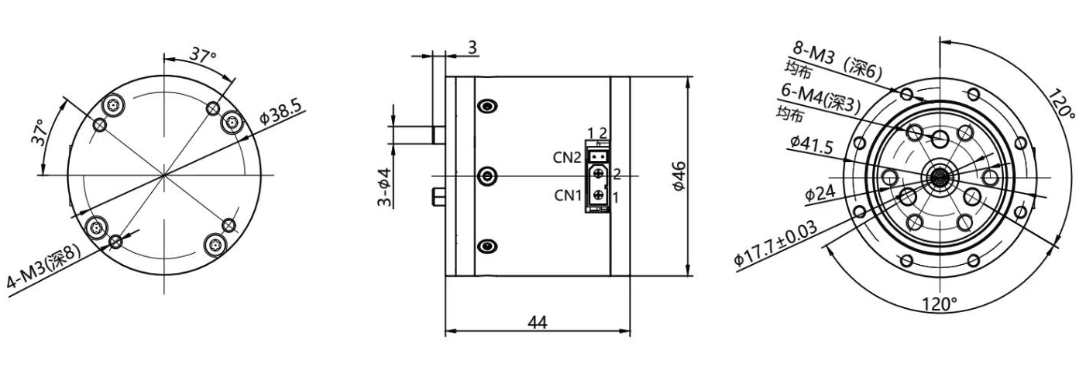

| Diameter(mm) | 46 |
| Thickness(mm) | 44 |
| Weight | 242g |
| Hollow | No |
| CAN | def. |
| EtherCAT | null |
| CANFD | null |
| Rotor | null |
| Encoder | Dual |
| Verification | Yes |
