Turing Product
PhyArc-102
Part ID: 2R9Z3A3B7Y
$2,499
CAD
DownloadSpecifications
| Company | PhyArc |
| Type | PhyArc-102 |
| Peak torque(Nm) | 244 |
| Peak speed(RPM) | 124.2 |
| Rated Current(A) | 15 |
| Rated torque (Nm) | 60 |
| Peak Current(A) | 80 |
| Rated Voltage(V) | 72 |
| Max Voltage(V) | 72 |
| Rated Speed(RPM) | 100 |
| Reduction Ratio | 25 |

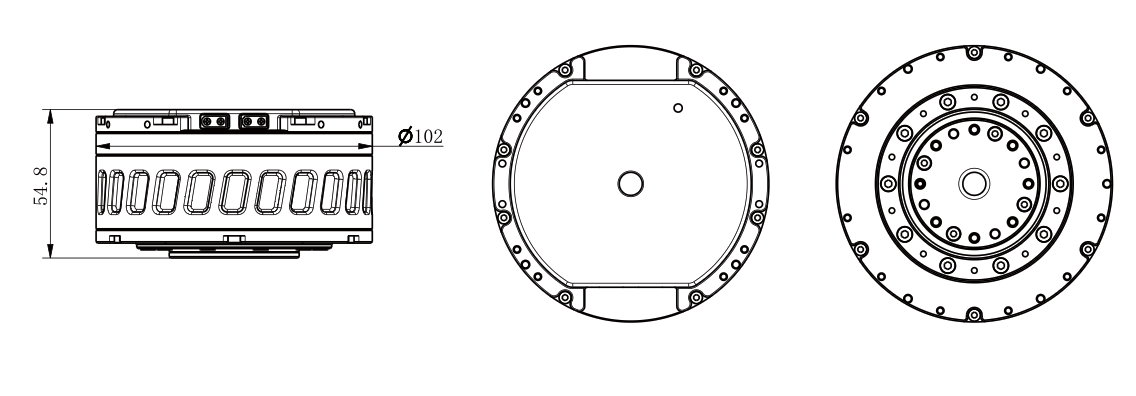

| Diameter(mm) | 102 |
| Thickness(mm) | 54.8 |
| Weight | 1000g |
| Hollow | Yes |
| CAN | null |
| EtherCAT | null |
| CANFD | def. |
| Rotor | null |
| Encoder | Dual |
| Verification | Yes |
