Turing Product
PhyArc-47
Part ID: 5R3INZHMB
$1,699

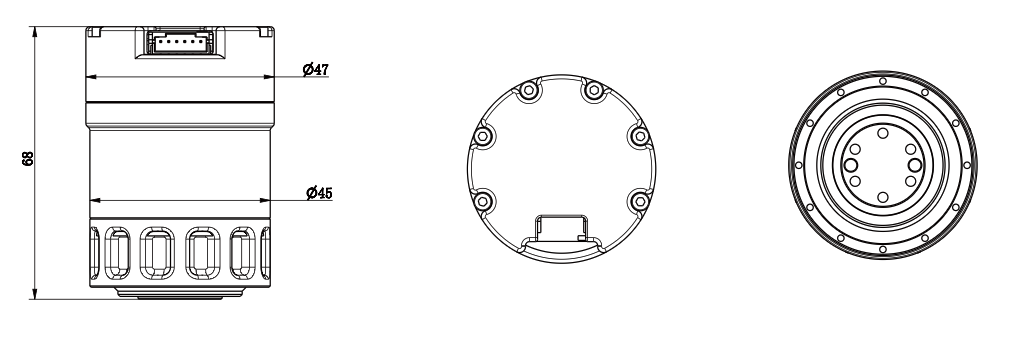

CAD
DownloadSpecifications
| Company | PhyArc |
| Type | PhyArc-47 |
| Peak torque(Nm) | 12 |
| Peak speed(RPM) | 343.8 |
| Rated Current(A) | 3 |
| Rated torque (Nm) | 3 |
| Peak Current(A) | 12 |
| Rated Voltage(V) | 72 |
| Max Voltage(V) | 72 |
| Rated Speed(RPM) | 100 |
| Reduction Ratio | 25 |
| Diameter(mm) | 47 |
| Thickness(mm) | 68 |
| Weight | 343g |
| Hollow | No |
| CAN | null |
| EtherCAT | null |
| CANFD | def. |
| Rotor | null |
| Encoder | Dual |
| Verification | Yes |
