Turing Product
PhyArc-78
Part ID: 13RAX4W9IL
$1,799

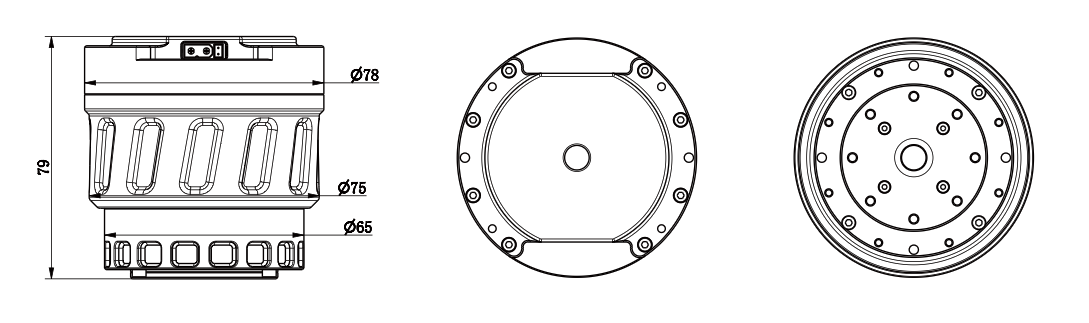

CAD
DownloadSpecifications
| Company | PhyArc |
| Type | PhyArc-78 |
| Peak torque(Nm) | 136 |
| Peak speed(RPM) | 114.6 |
| Rated Current(A) | 10 |
| Rated torque (Nm) | 40 |
| Peak Current(A) | 64 |
| Rated Voltage(V) | 72 |
| Max Voltage(V) | 72 |
| Rated Speed(RPM) | 100 |
| Reduction Ratio | 25 |
| Diameter(mm) | 78 |
| Thickness(mm) | 79 |
| Weight | 980g |
| Hollow | Yes |
| CAN | null |
| EtherCAT | null |
| CANFD | def. |
| Rotor | null |
| Encoder | Dual |
| Verification | Yes |
