Turing Product

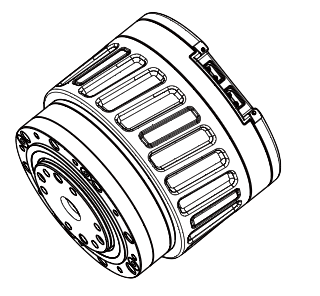

PhyArc-95
Part ID: 24P49ZZOWK
$2,199

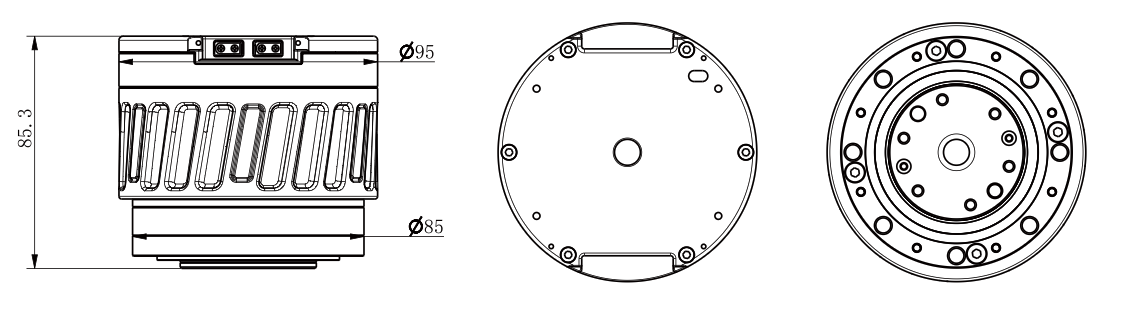

CAD
DownloadSpecifications
| Company | PhyArc |
| Type | PhyArc-95 |
| Peak torque(Nm) | 228 |
| Peak speed(RPM) | 124.2 |
| Rated Current(A) | 20 |
| Rated torque (Nm) | 75 |
| Peak Current(A) | 80 |
| Rated Voltage(V) | 72 |
| Max Voltage(V) | 72 |
| Rated Speed(RPM) | 80 |
| Reduction Ratio | 21 |
| Diameter(mm) | 95 |
| Thickness(mm) | 85.3 |
| Weight | 1680g |
| Hollow | Yes |
| CAN | null |
| EtherCAT | null |
| CANFD | def. |
| Rotor | null |
| Encoder | Dual |
| Verification | Yes |
