Turing Product
RS-02
Part ID: 10QE8T3CNP
$189

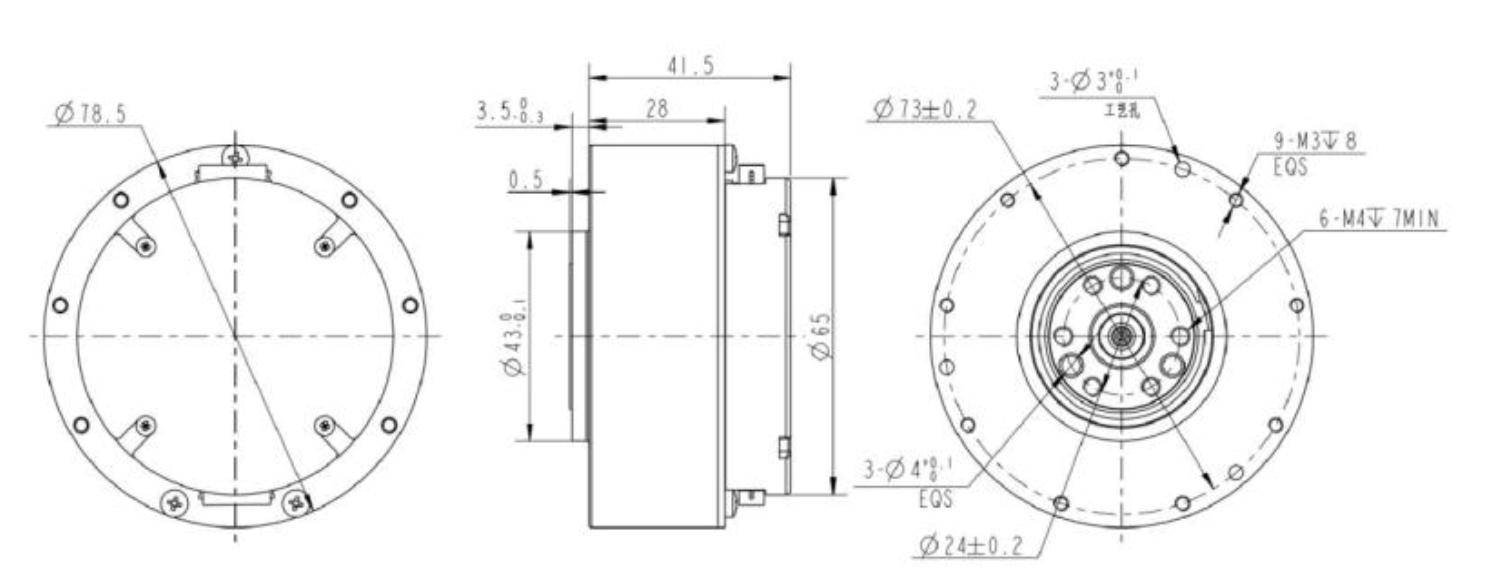

CAD
DownloadSpecifications
| Company | RobStride |
| Type | RS-02 |
| Peak torque(Nm) | 17 |
| Peak speed(RPM) | 410 |
| Rated Current(A) | 7 |
| Rated torque (Nm) | 6 |
| Peak Current(A) | 23 |
| Rated Voltage(V) | 48 |
| Max Voltage(V) | 60 |
| Rated Speed(RPM) | 100 |
| Reduction Ratio | 7.75 |
| Diameter(mm) | 78.5 |
| Thickness(mm) | 45 |
| Weight | 380g |
| Hollow | No |
| CAN | def. |
| EtherCAT | null |
| CANFD | null |
| Rotor | null |
| Encoder | Dual |
| Verification | Yes |
