Turing Product
PA60-13-36
Part ID: 1UDH788LCW
$799

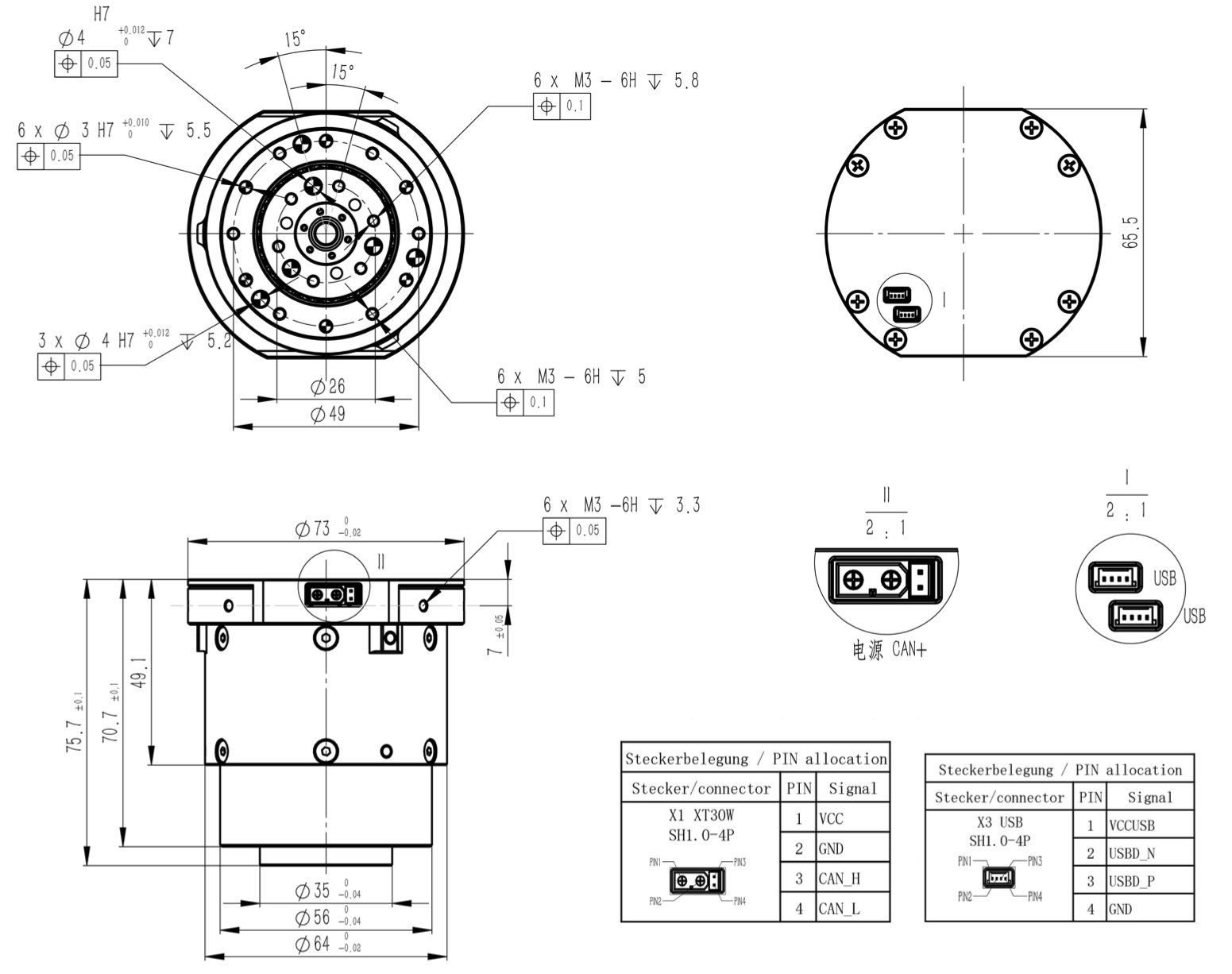

CAD
DownloadSpecifications
| Company | Motorevo |
| Type | PA60-13-36 |
| Peak torque(Nm) | 50 |
| Peak speed(RPM) | 67 |
| Rated Current(A) | 7 |
| Rated torque (Nm) | 16 |
| Peak Current(A) | 20 |
| Rated Voltage(V) | 48 |
| Max Voltage(V) | 72 |
| Rated Speed(RPM) | 50 |
| Reduction Ratio | 36 |
| Diameter(mm) | 73 |
| Thickness(mm) | 75.7 |
| Weight | 610g |
| Hollow | No |
| CAN | def. |
| EtherCAT | opt. |
| CANFD | opt. |
| Rotor | Internal |
| Encoder | null |
| Verification | Yes |
