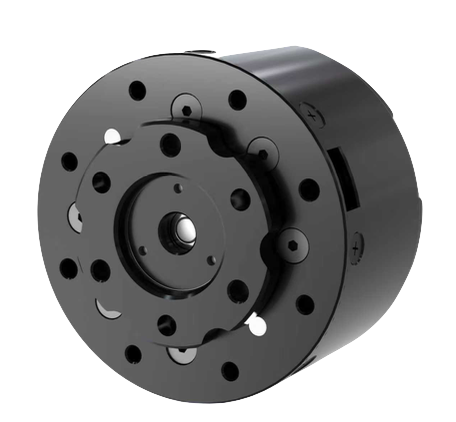

Planetary Integrated Joint PA43-10-25
Part ID: K9G92NQYS
$459
CAD

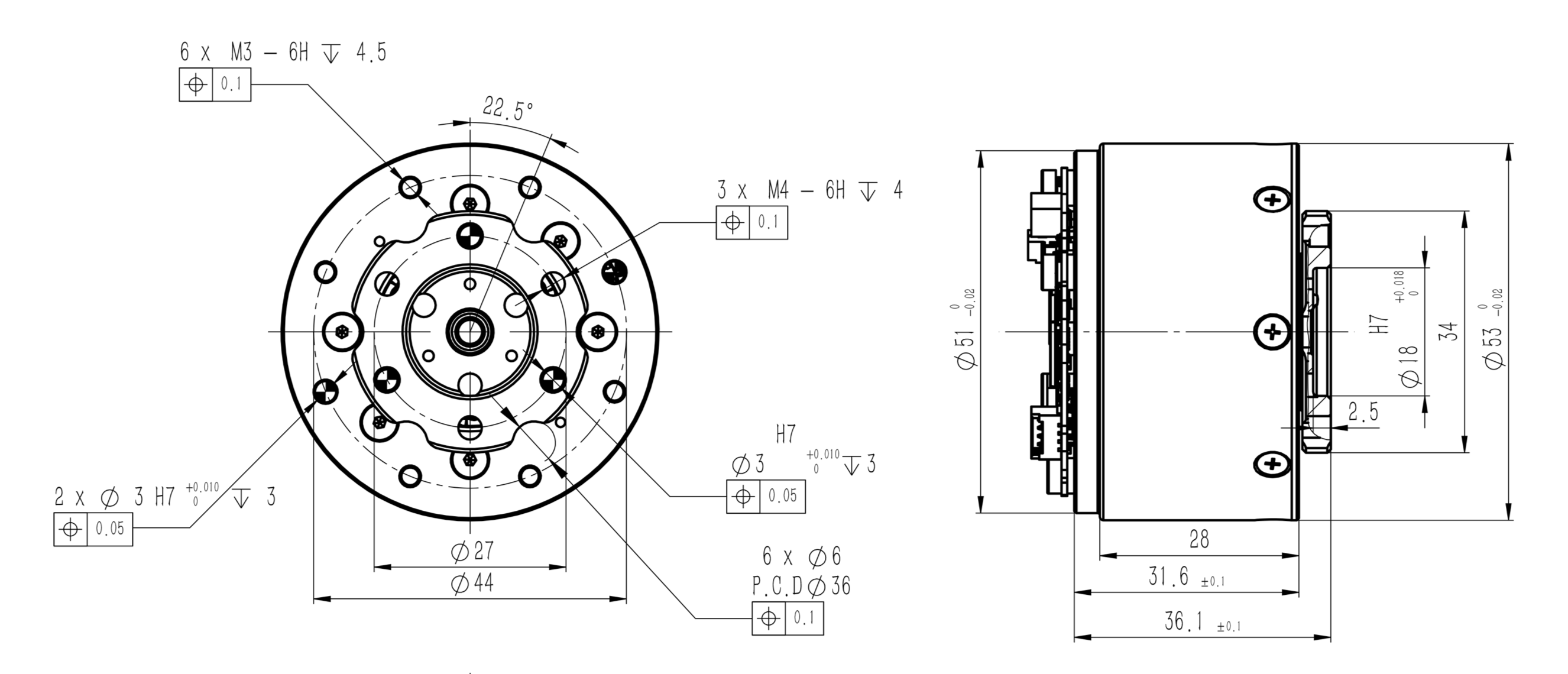

DownloadSpecifications
| Company | Motorevo |
| Type | PA43-10-25 |
| Peak torque(Nm) | 18 |
| Peak speed(RPM) | 140 |
| Rated Current(A) | 1.46 |
| Rated torque (Nm) | 6 |
| Peak Current(A) | 3 |
| Rated Voltage(V) | 48 |
| Max Voltage(V) | 72 |
| Rated Speed(RPM) | 100 |
| Reduction Ratio | 25 |
| Diameter(mm) | 53 |
| Thickness(mm) | 36.1 |
| Weight | 263g |
| Hollow | No |
| CAN | def. |
| EtherCAT | opt. |
| CANFD | null |
| Rotor | null |
| Encoder | Dual |
| Verification | Yes |
