Turing Product

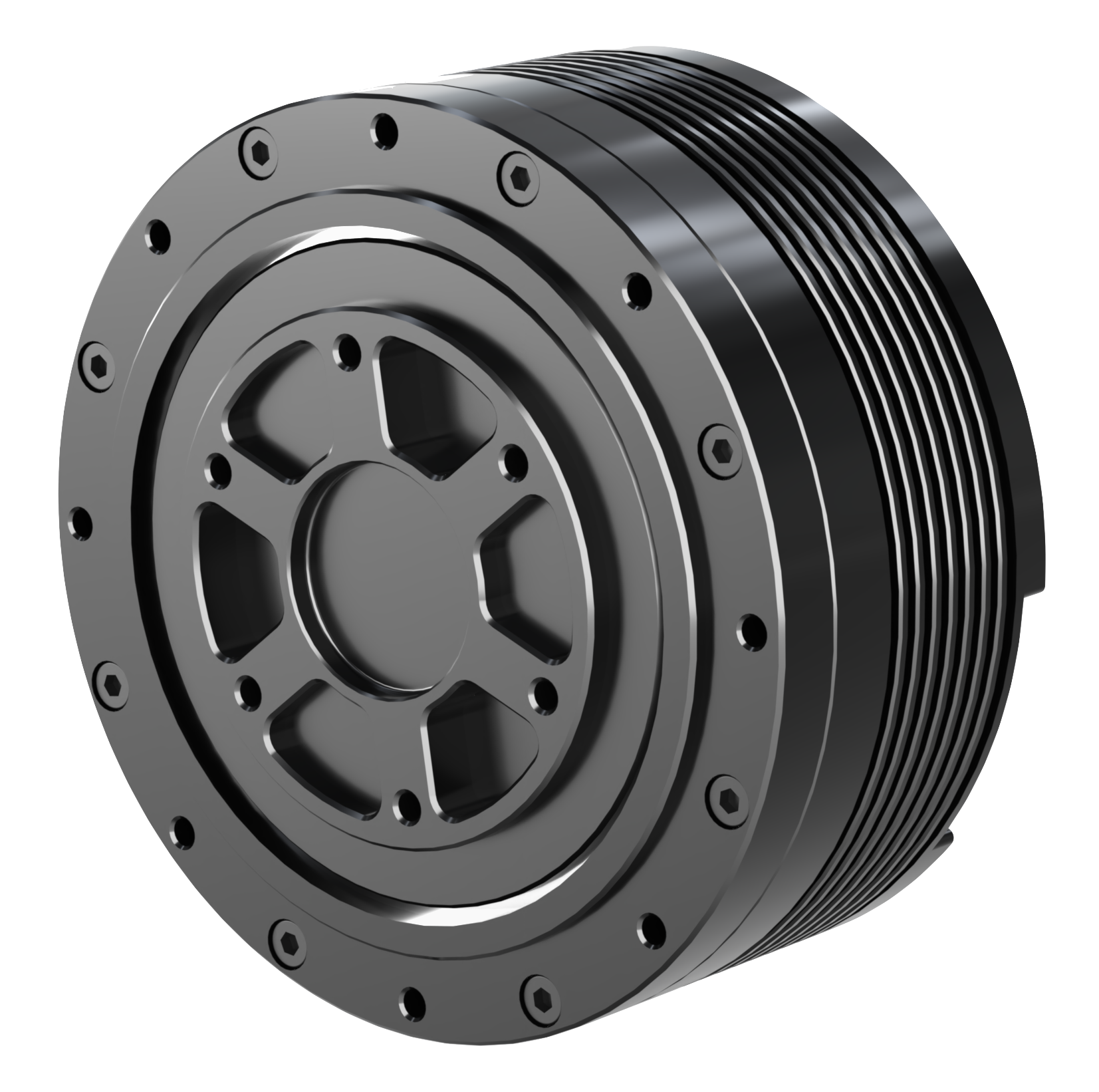

PA81-12-18
Part ID: 152PD4EFJ6
$NaN
CAD
DownloadSpecifications
| Company | Motorevo |
| Type | PA81-12-18 |
| Peak torque(Nm) | 90 |
| Peak speed(RPM) | 190 |
| Rated Current(A) | 16 |
| Rated torque (Nm) | 30 |
| Peak Current(A) | 57 |
| Rated Voltage(V) | 48 |
| Max Voltage(V) | 72 |
| Rated Speed(RPM) | 150 |
| Reduction Ratio | 18.33 |
| Diameter(mm) | 105 |
| Thickness(mm) | 53 |
| Weight | 900g |
| Hollow | No |
| CAN | def. |
| EtherCAT | opt. |
| CANFD | opt. |
| Rotor | null |
| Encoder | Dual |
| Verification | Yes |
