Turing Product

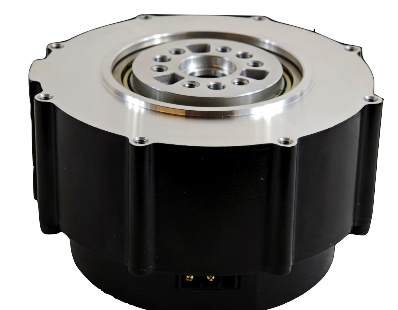

RS-06
Part ID: TZREYRVLM
$259

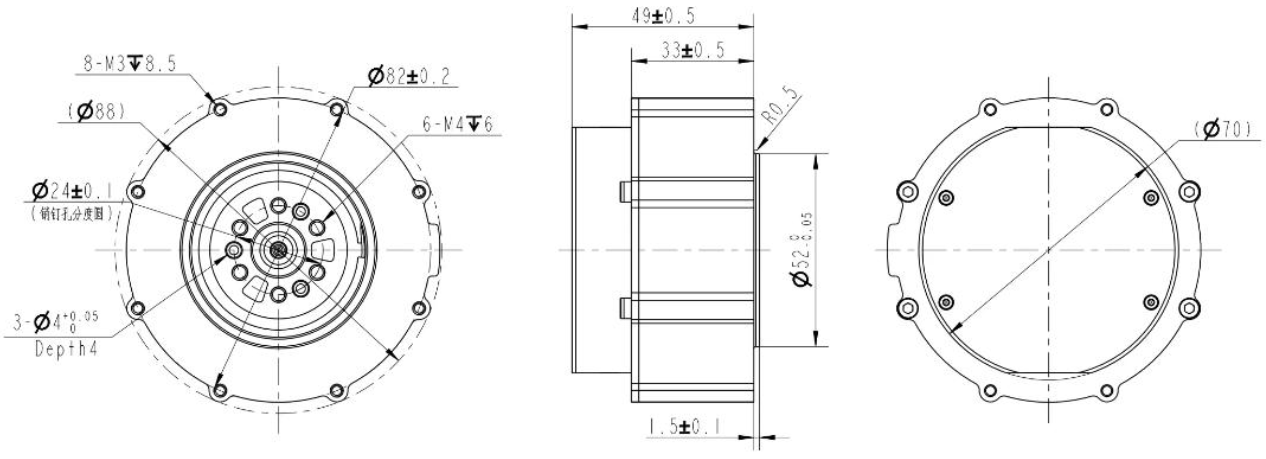

CAD
DownloadSpecifications
| Company | RobStride |
| Type | RS-06 |
| Peak torque(Nm) | 36 |
| Peak speed(RPM) | 480 |
| Rated Current(A) | 14.3 |
| Rated torque (Nm) | 11 |
| Peak Current(A) | 57 |
| Rated Voltage(V) | 48 |
| Max Voltage(V) | 60 |
| Rated Speed(RPM) | 100 |
| Reduction Ratio | 9 |
| Diameter(mm) | 82 |
| Thickness(mm) | 50.5 |
| Weight | 621g |
| Hollow | No |
| CAN | def. |
| EtherCAT | null |
| CANFD | null |
| Rotor | null |
| Encoder | Dual |
| Verification | Yes |
