Turing Product

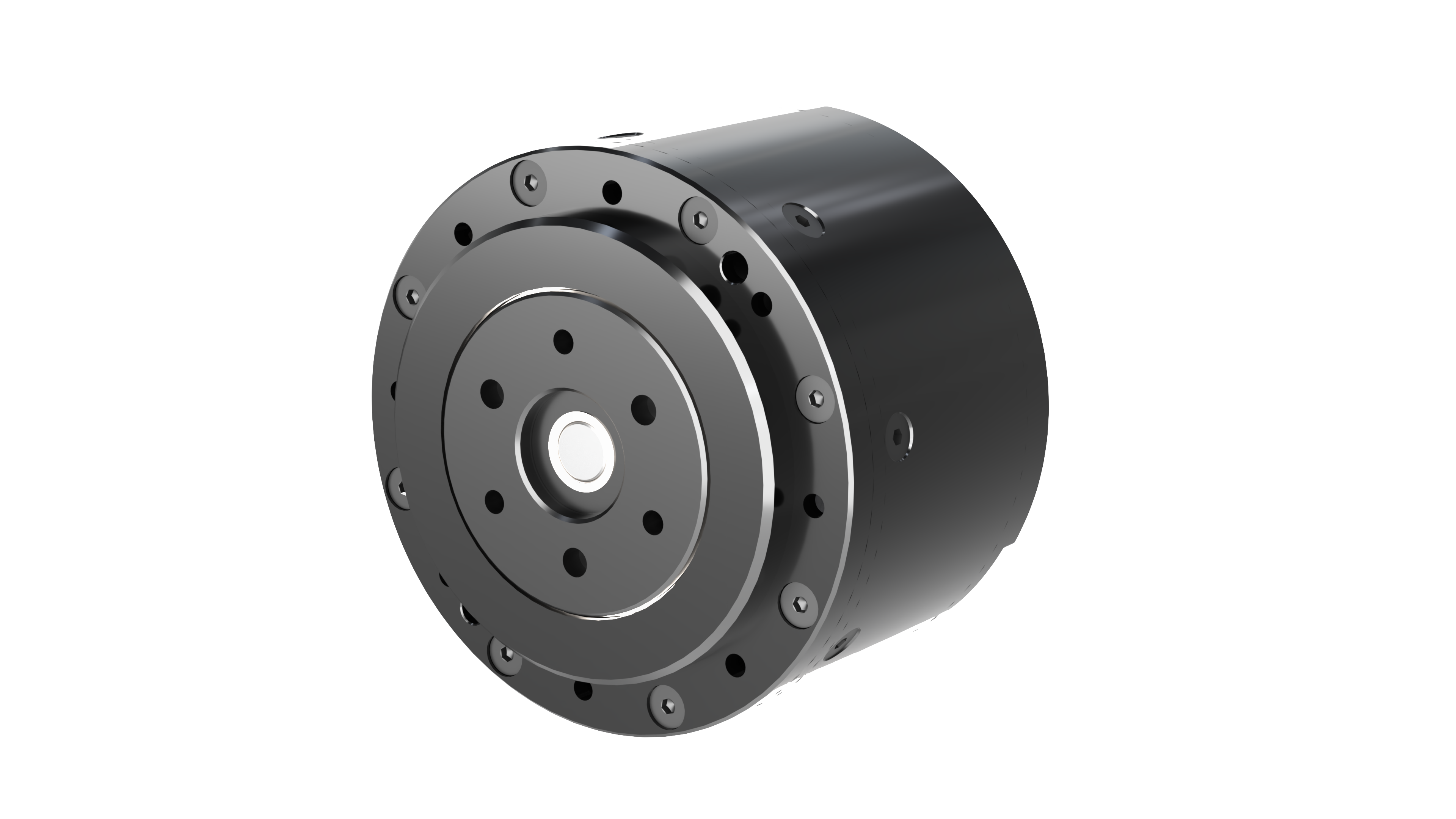

PA60-10-39
Part ID: 6X9IITNOT
$0
CAD
DownloadSpecifications
| Company | Motorevo |
| Type | PA60-10-39 |
| Peak torque(Nm) | 76 |
| Peak speed(RPM) | 100 |
| Rated Current(A) | 7.5 |
| Rated torque (Nm) | 25 |
| Peak Current(A) | 25 |
| Rated Voltage(V) | 48 |
| Max Voltage(V) | 72 |
| Rated Speed(RPM) | 80 |
| Reduction Ratio | 39 |
| Diameter(mm) | 79 |
| Thickness(mm) | 62.5 |
| Weight | 640g |
| Hollow | No |
| CAN | def. |
| EtherCAT | opt. |
| CANFD | opt. |
| Rotor | External |
| Encoder | Dual |
| Verification | Yes |
