Turing Product

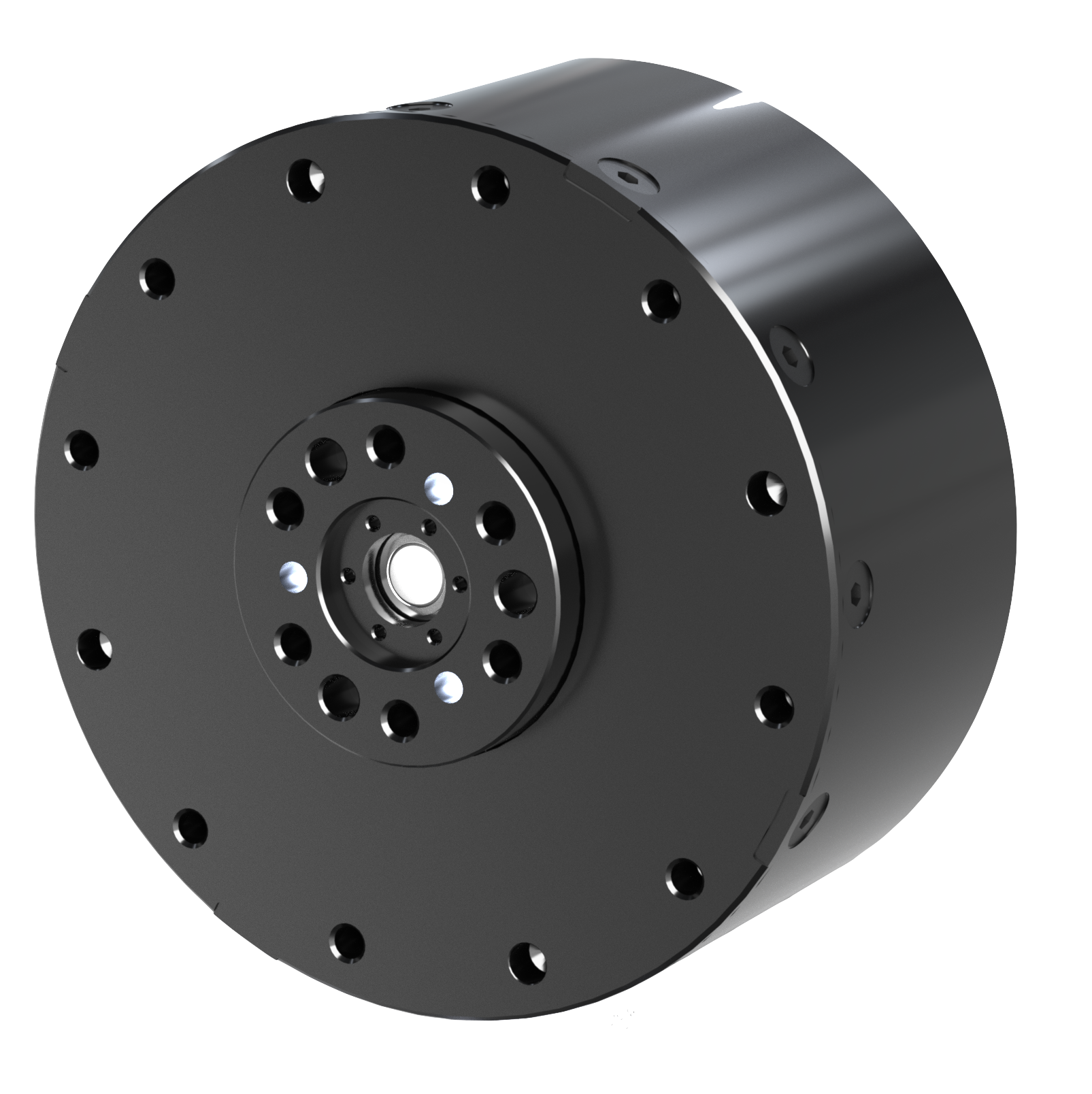

PA72-10-36
Part ID: AQT1PJ6DM
$799

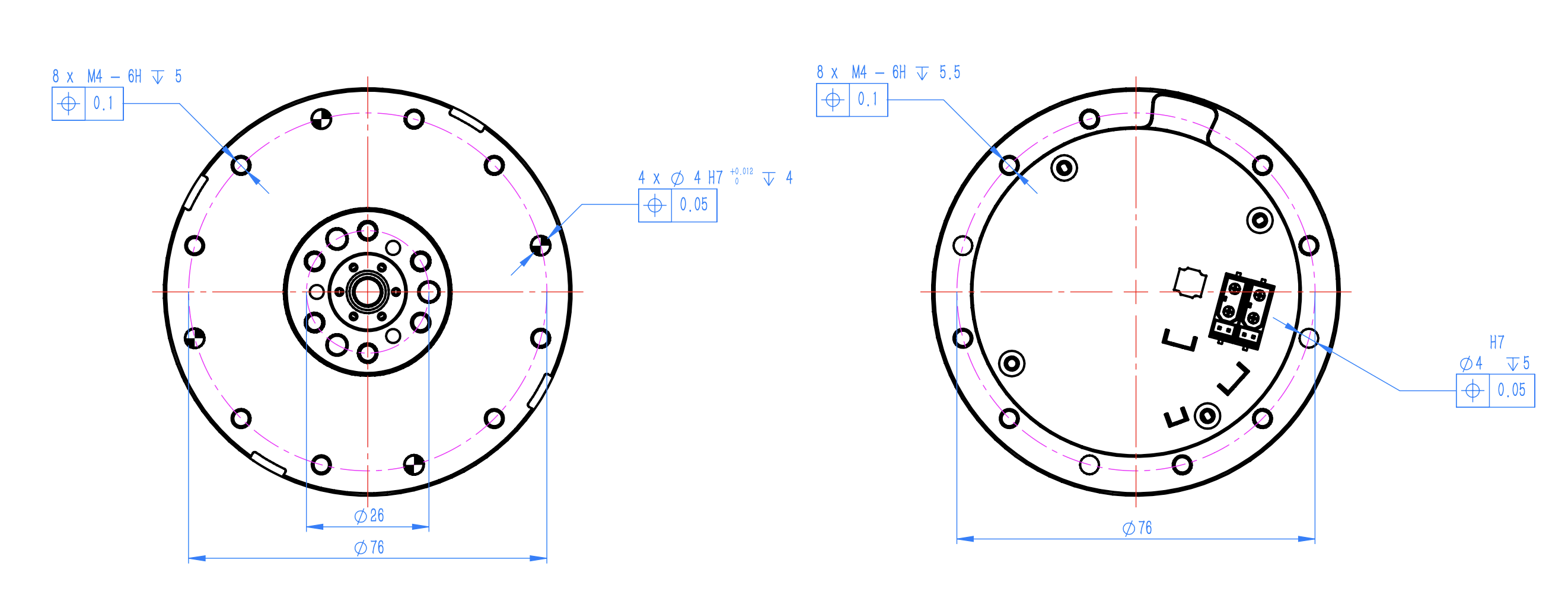

CAD
DownloadSpecifications
| Company | Motorevo |
| Type | PA72-10-36 |
| Peak torque(Nm) | 82 |
| Peak speed(RPM) | 64 |
| Rated Current(A) | 7 |
| Rated torque (Nm) | 27 |
| Peak Current(A) | 17 |
| Rated Voltage(V) | 48 |
| Rated Speed(RPM) | 30 |
| Reduction Ratio | 36 |
| Diameter(mm) | 86.5 |
| Thickness(mm) | 52 |
| Weight | 630g |
| Hollow | No |
| CAN | def. |
| EtherCAT | opt. |
| CANFD | opt. |
| Rotor | External |
| Encoder | null |
| Verification | Yes |
